NC-ETKO-..L

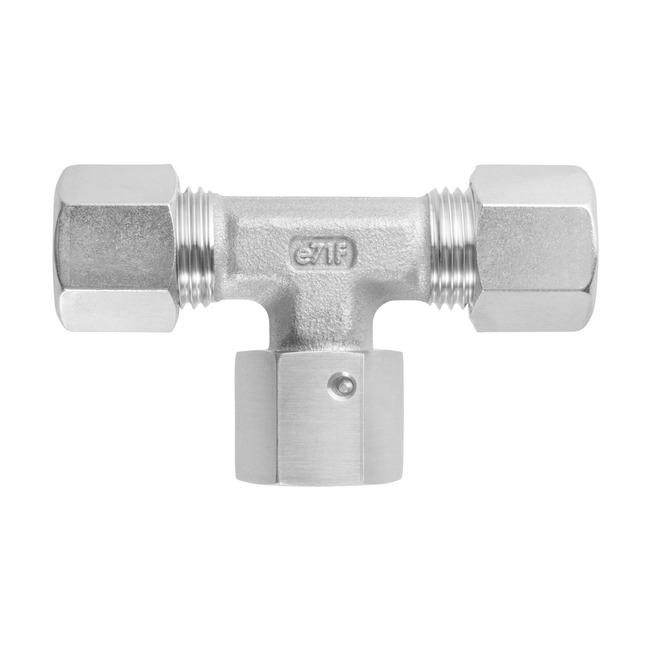

Adjustable T fittings with taper and O-ring

Art. no.: -

SO Code: -

Art. no.: -

Sizes are approximate dimensiones at tightened nut.

Sealing material: FKM (other materials on request)

Type	(Cust.) Art. no.	PN	D1	L2	L3	CAD	Legend
Type	NC-ETKO-06L	Art. no.	1028323	PN	250	D1	6.0	L2	12.0	L3	26.0	CAD	Download	pcs
Type	NC-ETKO-08L	Art. no.	1028320	PN	250	D1	8.0	L2	14.0	L3	27.5	CAD	Download	pcs
Type	NC-ETKO-10L	Art. no.	1028318	PN	250	D1	10.0	L2	15.0	L3	29.0	CAD	Download	pcs
Type	NC-ETKO-12L	Art. no.	1028548	PN	250	D1	12.0	L2	17.0	L3	29.5	CAD	Download	pcs
Type	NC-ETKO-15L	Art. no.	1028776	PN	250	D1	15.0	L2	21.0	L3	32.5	CAD	Download	pcs
Type	NC-ETKO-18L	Art. no.	1028774	PN	160	D1	18.0	L2	23.5	L3	35.5	CAD	Download	pcs
Type	NC-ETKO-22L	Art. no.	1028772	PN	160	D1	22.0	L2	27.5	L3	38.5	CAD	Download	pcs

Sizes are approximate dimensiones at tightened nut.

Sealing material: FKM (other materials on request)
