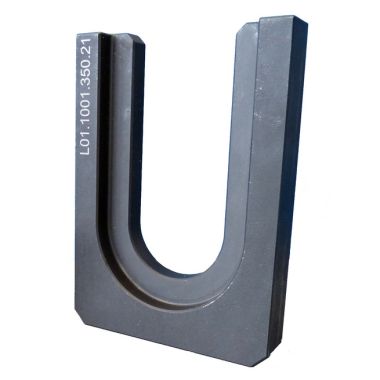

Counter plate for US-FL/01
Technical details
Additional information
A counter plate and a tool cone are available for each tube diameter (D1). Both are labelled with the corresponding tube diameters to prevent confusion.
Assembly tools are subject to wear and must be cleaned and checked on a regular basis. Worn tools must be replaced without delay to avoid incorrect assembly. When the tools are used as
intended, they have a service life of approximately 5000 assemblies.
Documents
-
Technical information pre-assembly machine US-FL/01 Download
| Type | (Cust.) Art. no. | D1 | Serie | g/pc | CAD | Legend | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | US-FL/01-P06L/S | Art. no. | 1005152 | D1 | 6.0 | Serie | L/S | g/pc | 739 | CAD | - | |
| Type | US-FL/01-P08L/S | Art. no. | 1019574 | D1 | 8.0 | Serie | L/S | g/pc | 737 | CAD | - | |
| Type | US-FL/01-P10L/S | Art. no. | 1015260 | D1 | 10.0 | Serie | L/S | g/pc | 704 | CAD | - | |
| Type | US-FL/01-P12L/S | Art. no. | 1005155 | D1 | 12.0 | Serie | L/S | g/pc | 697 | CAD | - | |
| Type | US-FL/01-P15L | Art. no. | 1007618 | D1 | 15.0 | Serie | L | g/pc | 665 | CAD | - | |
| Type | US-FL/01-P18L | Art. no. | 1020222 | D1 | 18.0 | Serie | L | g/pc | 670.3 | CAD | - | |
| Type | US-FL/01-P22L | Art. no. | 1015259 | D1 | 22.0 | Serie | L | g/pc | 693 | CAD | - | |
| Type | US-FL/01-P28L | Art. no. | 1015258 | D1 | 28.0 | Serie | L | g/pc | 651 | CAD | - | |
| Type | US-FL/01-P35L | Art. no. | 1017371 | D1 | 35.0 | Serie | L | g/pc | 557 | CAD | - | |
| Type | US-FL/01-P42L | Art. no. | 1023274 | D1 | 42.0 | Serie | L | g/pc | 513 | CAD | - | |
| Type | US-FL/01-P14S | Art. no. | 1048585 | D1 | 14.0 | Serie | S | g/pc | 693 | CAD | - | |
| Type | US-FL/01-P16S | Art. no. | 1002043 | D1 | 16.0 | Serie | S | g/pc | 660 | CAD | - | |
| Type | US-FL/01-P20S | Art. no. | 1002908 | D1 | 20.0 | Serie | S | g/pc | 732 | CAD | - | |
| Type | US-FL/01-P25S | Art. no. | 1002904 | D1 | 25.0 | Serie | S | g/pc | 679 | CAD | - | |
| Type | US-FL/01-P30S | Art. no. | 1002906 | D1 | 30.0 | Serie | S | g/pc | 638 | CAD | - | |
| Type | US-FL/01-P38S | Art. no. | 1021019 | D1 | 38.0 | Serie | S | g/pc | 539 | CAD | - |
A counter plate and a tool cone are available for each tube diameter (D1). Both are labelled with the corresponding tube diameters to prevent confusion.
Assembly tools are subject to wear and must be cleaned and checked on a regular basis. Worn tools must be replaced without delay to avoid incorrect assembly. When the tools are used as
intended, they have a service life of approximately 5000 assemblies.
